Powerful Microscopes Resolve High Resolution Structures
Benefit from access to state-of-the-art Titan Krios microscopes without the associated cost & infrastructure headaches.

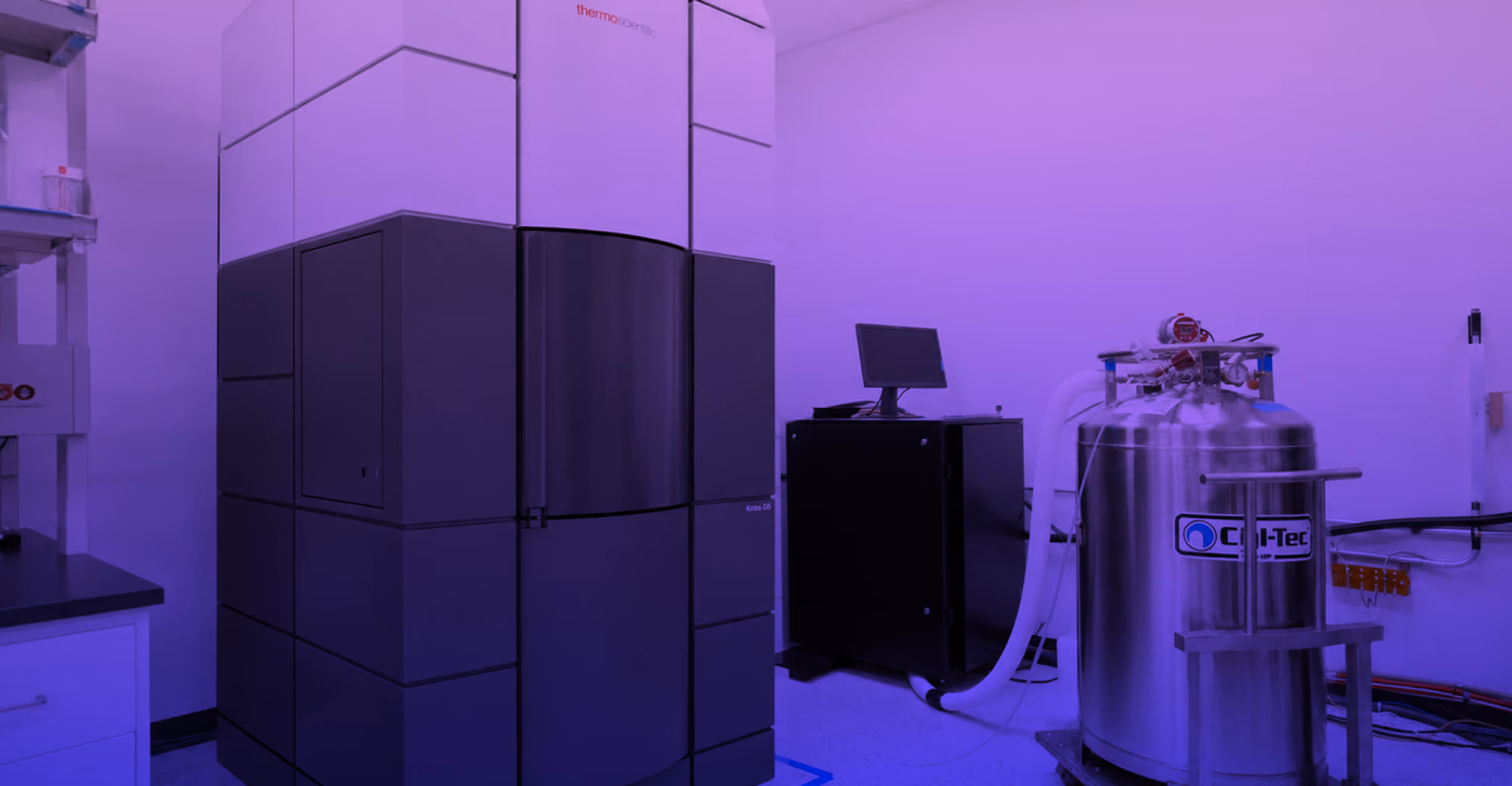

We have multiple Titan Krios transmission electron microscopes from Thermo Fisher Scientific (formerly FEI). These microscopes are designed to generate high resolution data quickly.
Specifications
- Source: High-brightness field emission gun (FEG)
- Accelerating voltage: up to –300 kV
- Cryo-Autoloader: Automated loading of cassettes, containing up to 12 Autogrids
Software
- Temperature management software – Including liquid nitrogen autofill and cool down scheduling
- Low-dose software suite minimizes electron dose during cryo-TEM operation(Used for Sample Assessment, Optimization, and Automated Data Acquisition)
Lenses
- Automatic condenser, objective and SA apertures
- Three-condenser-lens system for automated, continuous, and parallel sample illumination
Stage
- CompuStage with Single-Axis Holder
Cameras
- Thermo Scientific Ceta 16M Camera
- Gatan K3 Direct Detection Camera
Additional Features
- Gatan Bio Quantum Energy Filter
- Volta Phase Plate (not all Krioses)
Capabilities
- We can collect > 600 micrographs per hour
- Drift rate: <1 nm / min
